SHAUMBURG MINI GOLF COURSE
Multiple permanent installations for a mystery mini golf course. Each build features a different interactive and puzzle for the user to solve.
ROLE
Production Designer
EMPLOYER
L3DFX
DATE
2023
Provided with concepts, my team was tasked with producing multiple permanent installations to be located in a mini golf course.
All of these builds have components beyond mini golf, varying between puzzles, physical interactives, and AV components.
My contributions to this project included the production design of Hole 7: The Wizard, and Hole 4: Haunted Mansion.
DEFINE.
Design considerations included:
-
Maintaining IP
-
Maintaining project budget
-
Build co-operation and install on site
-
Typical wear and tear
IDEATE.
Design strategy throughout the course varied widely.
My builds primarily utilized plywood and lumber frames, paired with scenic foam and paneling.
DESIGN.
Design Processes Included:
-
CAD Modeling (Rhino 3D
-
Assembly Design
-
Export for CNC Machining
-

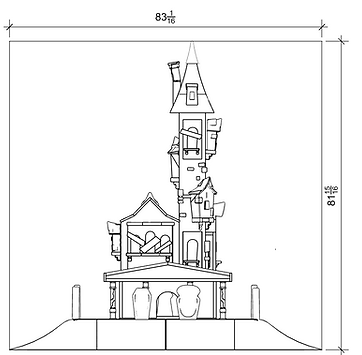

Production Drawings for Welding, Carpentry, and Fabrication builds.
BUILD.
DEFINE.
SCALE
INSTALL
INTERACTION
TIMELINE
Wizard
5'x 7' x 9'
Haunted House
5'x5'x6'
Permanent Install

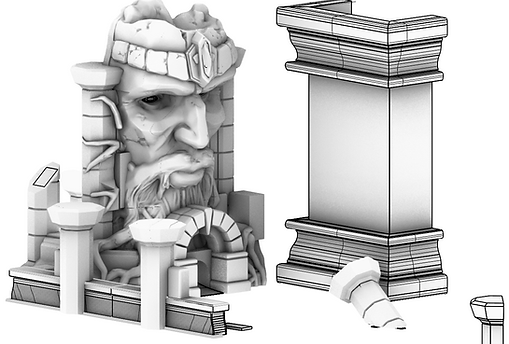

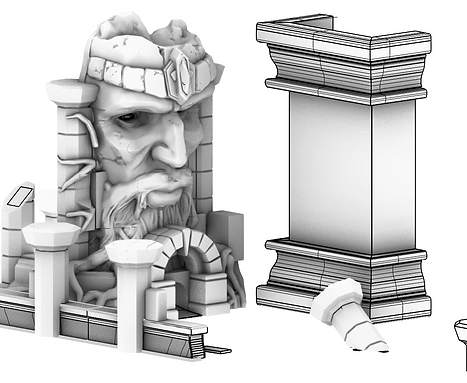

Wizard

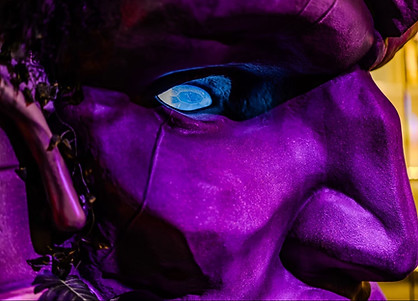

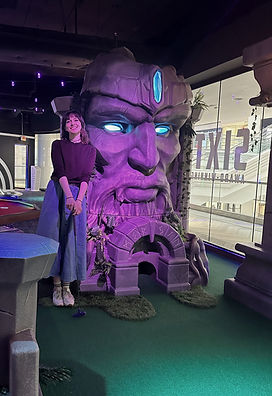

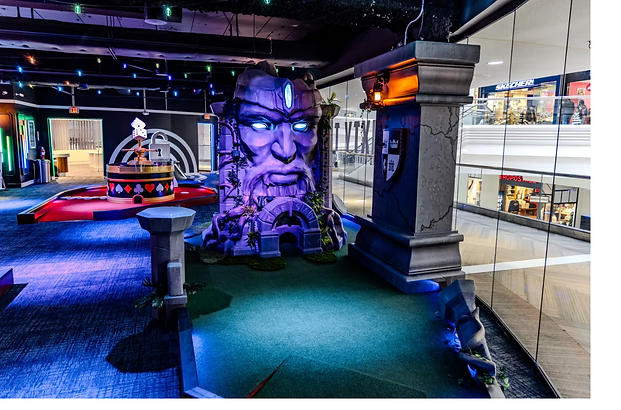

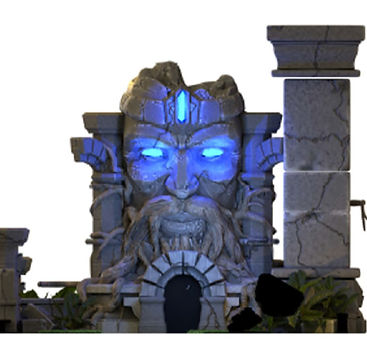

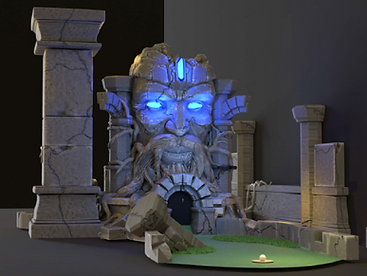

Players shoot a ball through the wizard's mouth, avoiding various obstacles built up around the wizard statue. The wizard has lighting and audio effects that activate with the ball passing through the statue's mouth, and when the player achieves a hole in one.

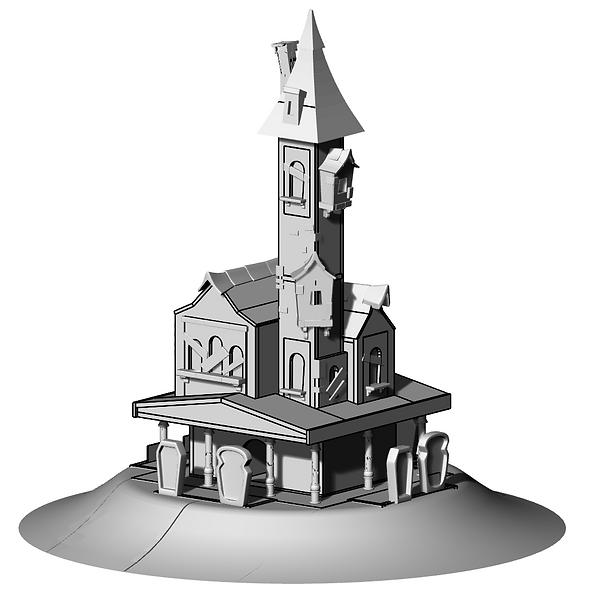

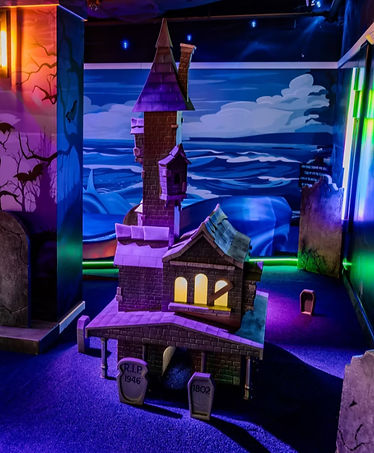

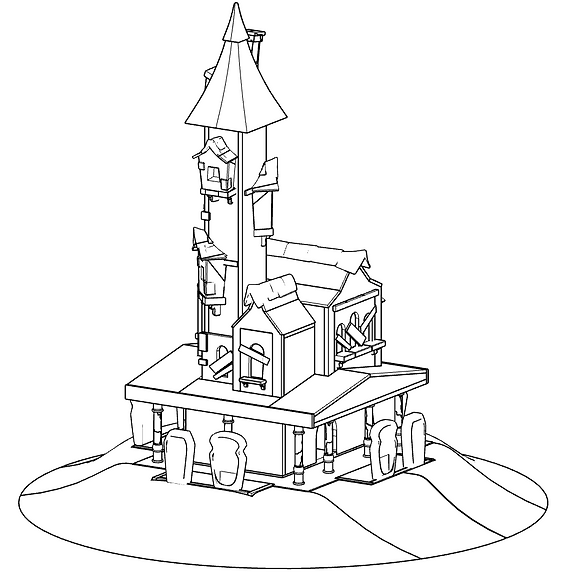

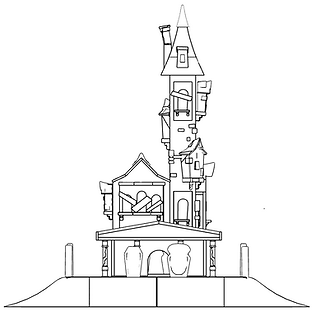

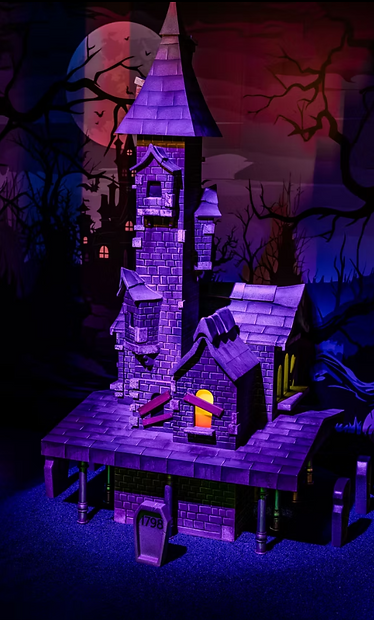

Haunted House

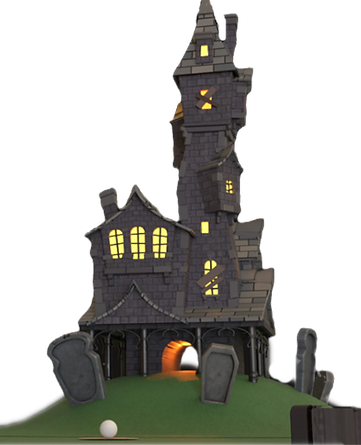

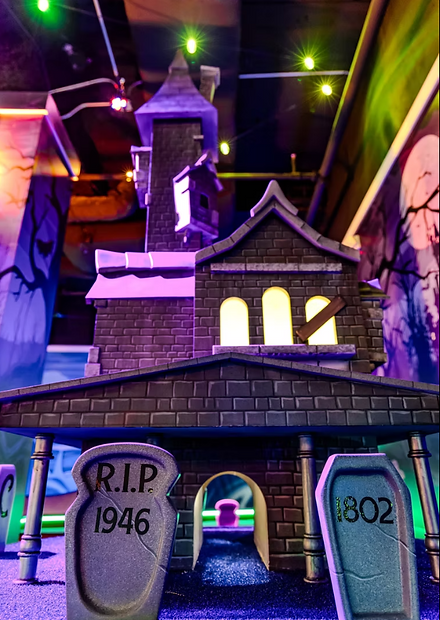

Players shoot a ball up a ramp into the main entrance of the haunted house. The haunted house has lighting effects that activate with the ball passing through the house, and when the player achieves a hole in one.
08.2024-01.2025
IDEATE.
DESIGN.
BUILD.
